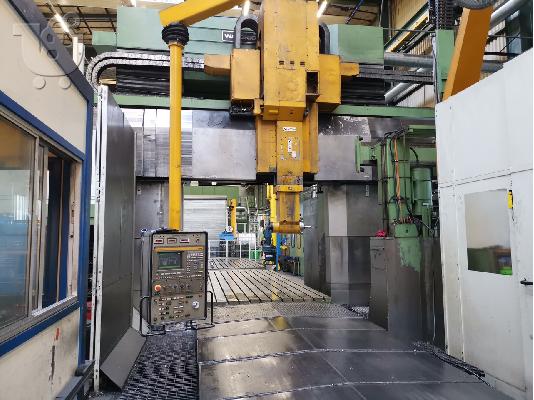

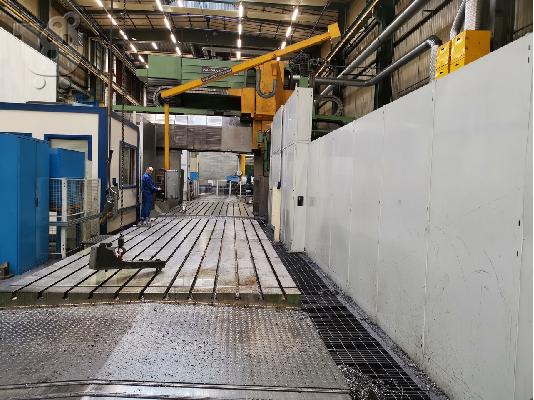

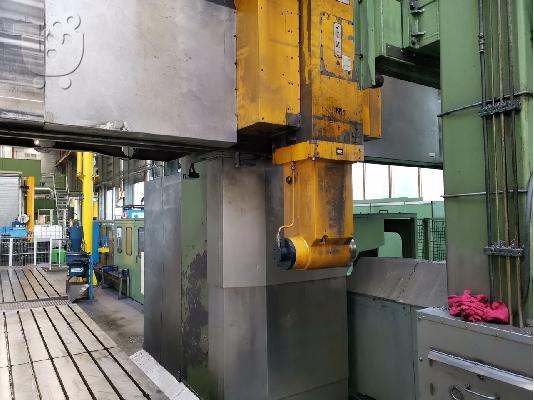

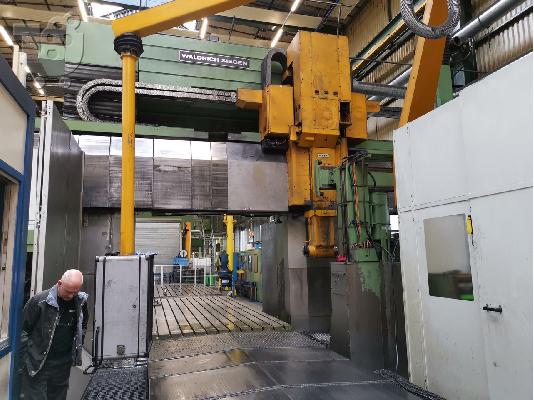

CNC PORTAL MILLING MACHINE WALDRICH SIEGEN PCM 3000 AT-RQ1 • Built year- 1991/ modernized- 2006. • CNC control- Siemens Sinumerik 880 M • X : 16.000 mm • Y : 4.000 mm • Z : 1.250 mm • W: 3.000 mm • 2 x Tables: 1 x 6.500 x 2.500 mm and 1 7.500 x 2.500 mm • Distance between columns 3.000 mm • Spindle motor 63KW • Feeds X axis 5-15.072 mm/min • Feeds Y axis 5-15.000 mm/min • Feeds Z axis 5-10.288 mm/min • Feeds W axis 11-2.700 mm/min • Crossrail traverse 2.027 mm/min • Head pickupstation with 6 heads station, 9 diferent heads available. • Year 2006 – New Electric cabinet, new drives, axis motors and cables. • ATC The advertisement is for information purposes only. Ask for an offer.
| Τιμή: | Τιμή κατόπιν επικοινωνίας |
|---|---|
| Περιοχή: | Αθήνα |
