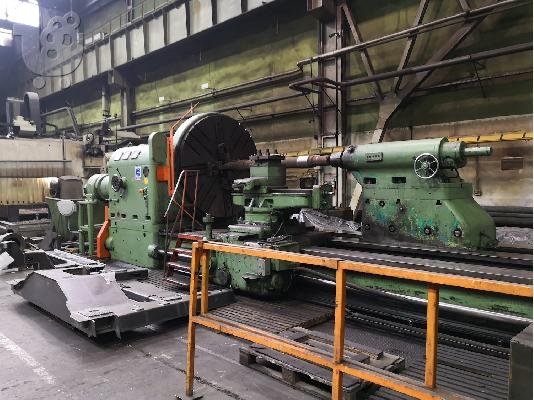

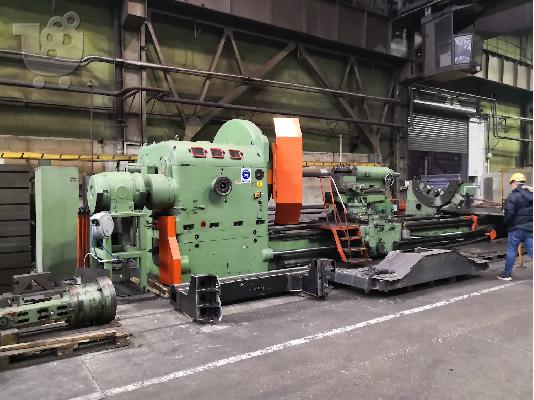

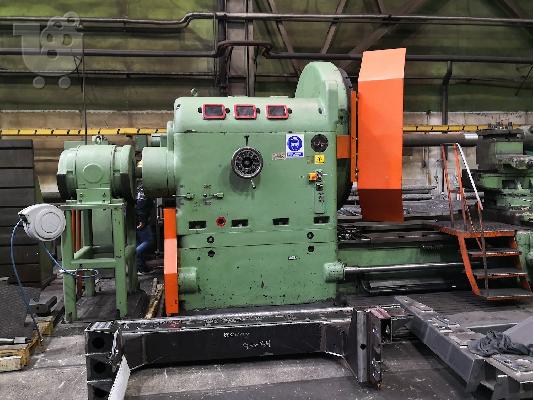

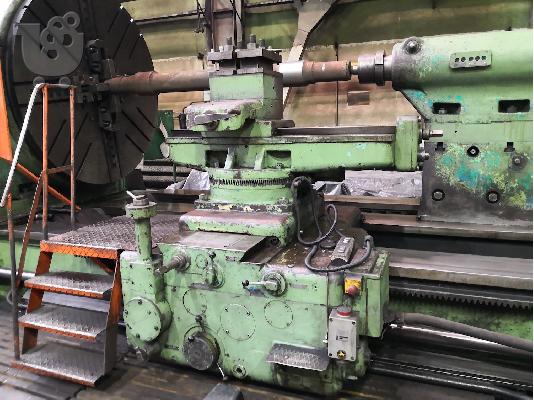

Heavy duty lathe SKODA SR200 – 2300x8000mm

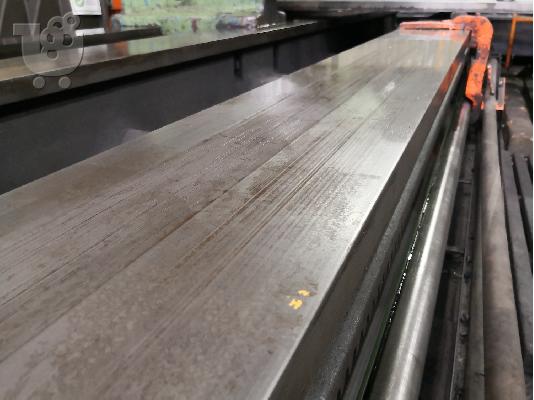

Heavy duty lathe SKODA SR200 – 2300x8000mm -Make: Czech Republic -Year of manufacture : 1975 -Type of control: conventional -Technical state: used, very good, still under power, after agreement ready for inspection and to test. Specifications: -Max. swing over bed: 2300 mm, -Max. turning diameter over slide rest: 1900 mm, -Max.workpiece length: L=8000 mm, -Bed width (guide bed): 2190 mm, -Faceplate diameter (4-jaw chuck): 2 000 mm, -Max. workpiece weight between centers: max. 60 000 kg, -Spindle speed range: 0,45 - 90 r/min -Swiveling angle of tool post: ± 90º, -Feeds of the lathe: 0,18-5,6 -Main motor: 60 kW, -Weight of machine: 36 400 kg, -Overall dimensions: L = 14,5m, B = 3,60m, H = 2,95m Equipment: -faceplate 2000 mm diameter, -taper turning device: 1 pcs, -self-centering rest: 1 pcs Modernization in 2008: -Repair of the machine's mechanical transmission, -exchange of the electric guidance, -new electric cabinet, -exchange of the installation of the lubrication, -bed grinding and exchange of sliding elements, -picking the working space up above the large bed and the saddle for 300 mm The advertisement is for information purposes only. Ask for an offer.
